Introduction

The Explorer service provides a central UI for all accessible REST interfaces of ApiOmat. The UI is based on Swagger UI and provide a user friendly way to interacts with all REST resources.

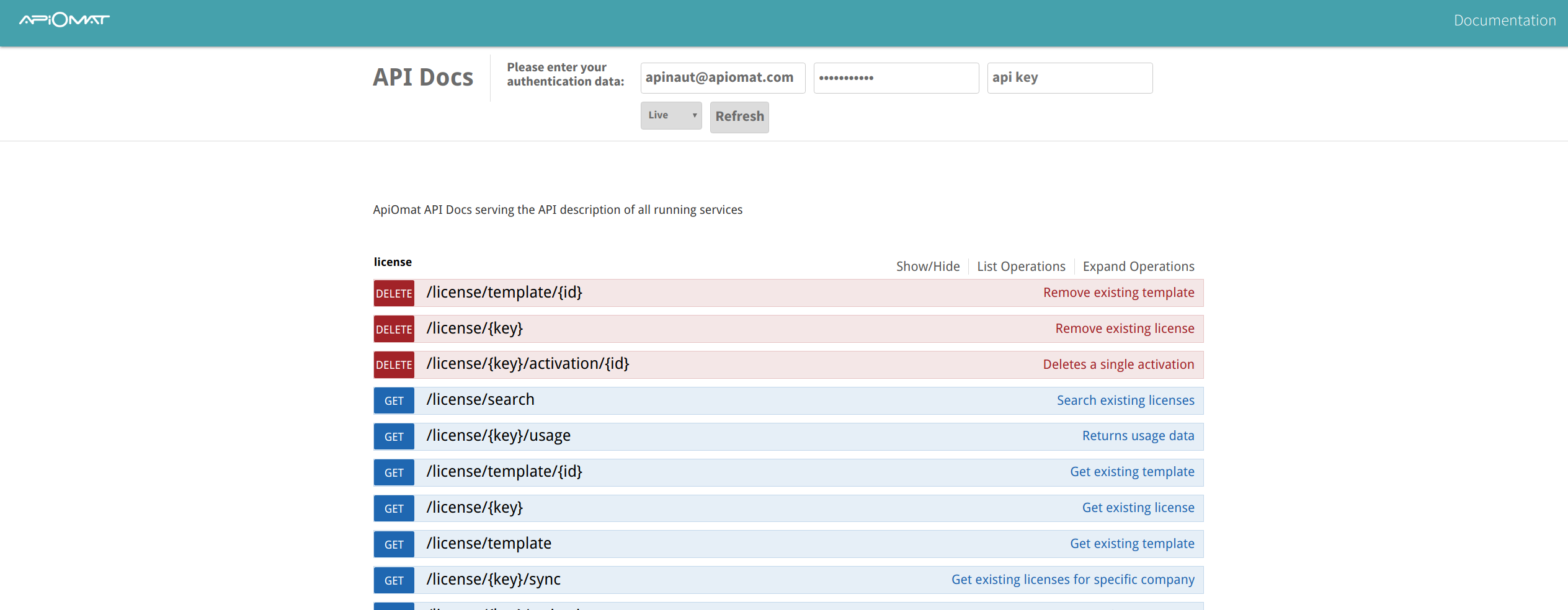

Explorer retrieve service information from the available Consul discovery. It use these information to query every of the available services (YAMBAS, all its modules and micro-services) in order to generate a single OpenAPI specification :

images/download/attachments/61503120/api-docs.png

As default, Explorer service will be available under the following :

Port	8094
Context path	/apidocs
Host	http://localhost:8094/apidocs

This service is included in YAMBAS until version 3.2. Afterwards, it needs to be installed by hand or via ApiOmat Meta Packages.

If this service were to be deployed as a WAR inside a YAMBAS Tomcat without Consul installed, please make sure that you provide the VM argument in 'aom-yambas' file to disable Consul as described in YAMBAS configuration.

Application-specific API Docs

The Explorer service also provides an application-specific API documentation which already contains the application name, the module name and the data model name of all available REST endpoints.
One of the advantages of the application-specific apidocs is that you have quick access to your available data model endpoints to manipulate your application data.

The generic apidocs view is still available by selecting "all applications" from list:

images/download/attachments/61503120/Apidocs_all_apps_example.PNG

To access the application specific apidocs you simply fill in your credentials, select your application from list and click on the refresh button:

images/download/attachments/61503120/Apidocs_app_specific_example.PNG

OpenAPI 2.0

The application-specific apidocs are based on a generated OpenAPI 2.0 JSON which is accessible via following REST endpoint:

images/download/attachments/61503120/Apidocs_openapi_generation_example.PNG

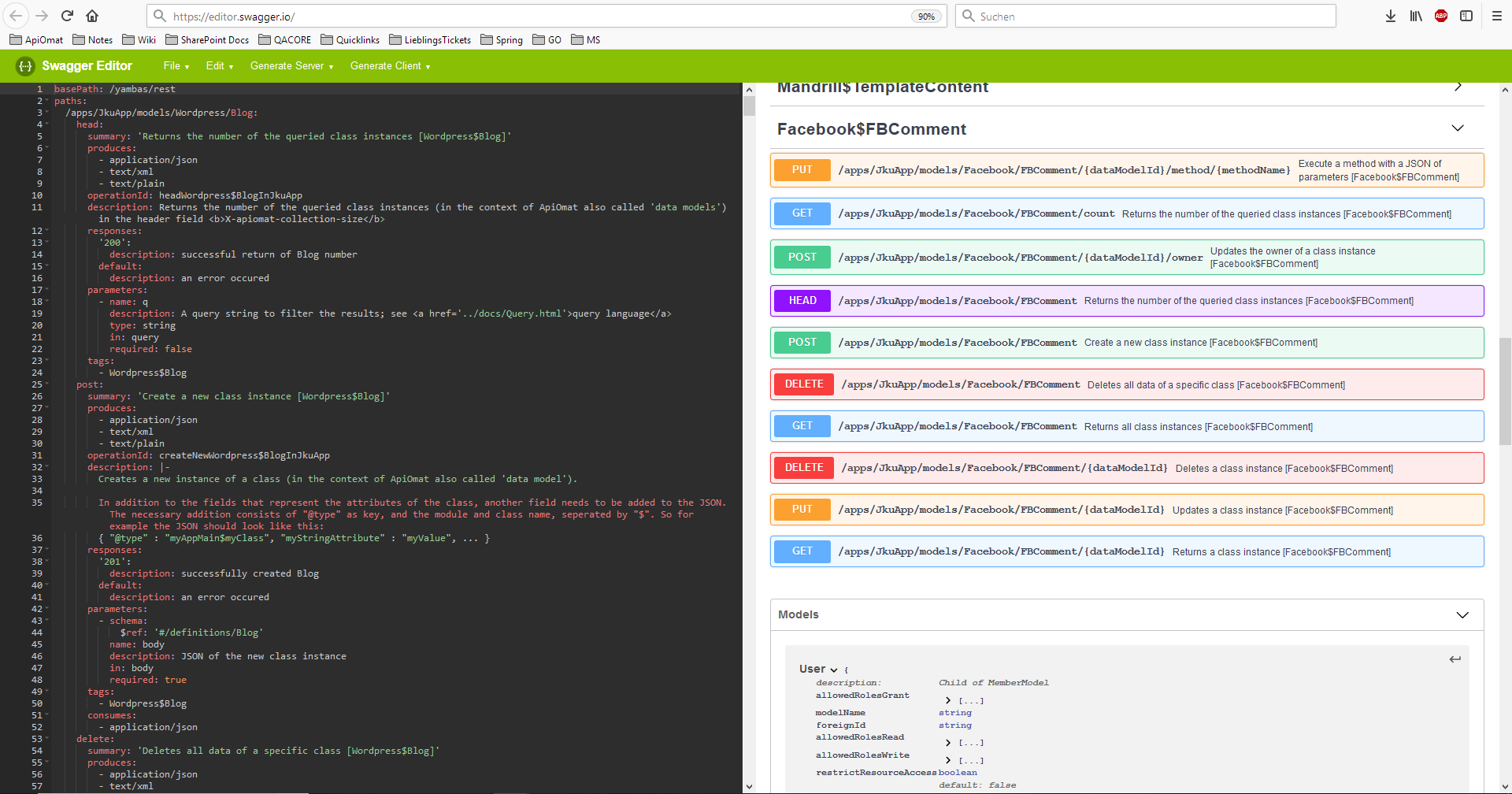

You may use the online swagger editor (https://editor.swagger.io) to view the OpenAPI document including all available REST endpoints of your application and the defined endpoint models:

images/download/attachments/61503120/view_openapi_gen.PNG

Prerequisites

Open the following port in the firewall to other ApiOmat nodes:

8094 (HTTP)

Installation of Consul is required!

Installation of AdoptOpenJDK is required when not using Docker!

System requirements

The following instance configurations are recommended.

Size	CPU	Memory	Disk	Typical Cloud Instance Types
All	2 core	1 GB RAM	500 MB	AWS: t2.medium
				Azure: Standard_ B1MS

Installation

USERNAME, PASSWORD, and TOKEN values are provided per customer from ApiOmat.

Debian/Ubuntu

# Install the repo key
wget -O - https://repo-int.apiomat.com/yambas/rest/web/Key/LIVE/apiomat-archive-keyring.asc | sudo apt-key add -
# Add the repository
echo "deb https://<USERNAME>:<PASSWORD>@repo.apiomat.com/yambas/rest/web/Repo/LIVE/deb ./" | sudo tee /etc/apt/sources.list.d/apiomat.list

# Update APT and install
apt-get update
apt-get install -y aom-explorer
service explorer start

Centos/Oracle/RedHat

# Add the repository
echo "[apiomat]
name=ApiOmat
baseurl=https://<USERNAME>:<PASSWORD>@repo.apiomat.com/yambas/rest/web/Repo/LIVE/rpm
gpgcheck=0
enabled=1" > /etc/yum.repos.d/apiomat.repo

# Install
yum -y --nogpgcheck install aom-explorer
service explorer start

Suse

# Add the repository
zypper addrepo --no-gpgcheck https://repo.apiomat.com/yambas/rest/web/Repo/LIVE/suse?token=<TOKEN> "ApiOmat"

# Refresh zypper and install
zypper refresh
zypper --no-gpg-checks --non-interactive install aom-explorer
service explorer start

Docker Compose

# Docker login
docker login -u <USERNAME> -p <PASSWORD>

# Store the following file and execute:
docker-compose -f explorer.yml up

explorer.yml:

version: '3'
services:
  explorer:
    image: apiomat/explorer:<VERSION>
    command: --spring.cloud.consul.enabled=false
    ports:
      - "8094:8094"

Kubernetes

# Docker login
kubectl create secret docker-registry regcred \
 --docker-server=https://index.docker.io/v1/ \
 --docker-username="<USERNAME>" \
 --docker-password="<PASSWORD>" \
 --docker-email="<MAIL>"

# Store the following file and execute
kubectl apply -f explorer.yml

explorer.yml:

---
# Source: apiomat-explorer/templates/service.yaml
kind: Service
apiVersion: v1
metadata:
  name: release-name-apiomat-explorer
  labels:
    app: apiomat-explorer
    chart: apiomat-explorer-1.1.0
    release: "release-name"
    heritage: "Tiller"
spec:
  ports:
  - name: http
    port: 8094
    protocol: TCP
  type: NodePort
  selector:
    app: apiomat-explorer
    release: release-name
---
# Source: apiomat-explorer/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: apiomat-explorer
    chart: apiomat-explorer-1.1.0
    heritage: Tiller
    release: release-name
  name: release-name-apiomat-explorer
spec:
  replicas: 1
  selector:
    matchLabels:
      app: apiomat-explorer
      chart: apiomat-explorer-1.1.0
      release: release-name
  template:
    metadata:
      labels:
        app: apiomat-explorer
        chart: apiomat-explorer-1.1.0
        release: release-name
    spec:
      imagePullSecrets:
        - name: <regcred>
      containers:
      - name: apiomat-explorer
        image: docker.io/apiomat/explorer:1.1.0
        command:
          - --spring.cloud.consul.enabled=false
        ports:
        - containerPort: 8094
          name: ms-port
        resources:
          limits:
            memory: 1Gi
          requests:
            memory: 1Gi

        livenessProbe:
          httpGet:
            path: /apidocs
            port: 8094
          initialDelaySeconds: 30
          periodSeconds: 10
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 6
        readinessProbe:
          httpGet:
            path: /apidocs
            port: 8094
          initialDelaySeconds: 5
          periodSeconds: 10
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 6
        imagePullPolicy: Always
        securityContext:
          capabilities: {  }
          privileged: false

---
# Source: apiomat-explorer/templates/ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: release-name-apiomat-explorer
  labels:
    app: apiomat-explorer
    chart: apiomat-explorer-1.1.0
    release: release-name
    heritage: Tiller
spec:
  rules:
    - host: "explorer.example.domain"
      http:
        paths:
          - path: /
            backend:
              serviceName: release-name-apiomat-explorer
              servicePort: ms-port

---
# Source: apiomat-explorer/templates/requirements.yaml

Helm

# Docker login
kubectl create secret docker-registry regcred \
 --docker-server=https://index.docker.io/v1/ \
 --docker-username="<USERNAME>" \
 --docker-password="<PASSWORD>" \
 --docker-email="<MAIL>"

# We are using helm to deploy the yambas replicaset

helm init
helm repo update
helm repo add apiomat https://apinautengmbh.github.io/helm/
helm fetch apiomat/apiomat-explorer

# extract the archive (.tgz) and find the values.yml. Adjust the parameters as required.

helm install apiomat/apiomat-explorer --name apiomat-explorer --values values.yaml

Windows

Download file: https://repo.apiomat.com/yambas/rest/web/Repo/LIVE/aom-explorer-<VERSION>.zip?token=<TOKEN> and unzip to installation folder
Ensure that the path to your installed jdk\bin is set to the system-environment variable 'Path' (java.exe needs to be accessible for windows' system user!)

Open administrative console and execute

Explorer-<VERSION>.exe install

Explorer-<VERSION>.exe start

to install as service and start afterwards.

For a removal of the service, execute

Explorer-<VERSION>.exe uninstall

Configuration

General service configuration possibilities are described at the configurations main page.

This service has the following specific configuration values:

Name

Description

Example

explorer.yambas-tomcat-fallback-url

When Explorer is deployed as WAR inside the same Tomcat as yambas, this is the base URL for reaching yambas (depends on Tomcat's settings.xml).

By default (when no value is set here) three URLs are tried:

"http://localhost:8080"
"http://localhost:8081" (works when using our Docker images)
request.getScheme( ) + "://" + request.getServerName( ) + ":" + request.getServerPort( )

Redirects are NOT followed!

http://localhost:8000

When Explorer is deployed as WAR inside the same Tomcat as YAMBAS, you can either change the configuration in "<TOMCAT_PATH>/webapps/explorer/WEB-INF/classes/application.yml" or, especially when running in Docker, via environment variable, for example "EXPLORER_YAMBAS-TOMCAT-FALLBACK-URL".

Logging

Linux

Logging is done to a separate logfile:

tail -f /var/log/apiomat/explorer.log

Docker

Please replace <EXPLORER_CONTAINER_ID> with your running container ID. You can list your running container using 'docker container list' command.

docker logs -f <EXPLORER_CONTAINER_ID>

Kubernetes

Please replace <EXPLORER_CONTAINER_ID> with your running container ID. You can list your running container using 'kubectl get pods' command.

kubectl logs -f <EXPLORER_CONTAINER_ID>

Windows

All logs are written to Event manager.

Next steps

Install further microservices.
