Configuration Parameters

In the last tutorial, we used a hook-method to set a default-value for newly created objects (which in this case were groceries). This default-value was hard-coded into the backend code. Now, suppose you want to let every customer who uses your module set this default value from the dashboard without having to download the module-code first and changing it there. That's possible by using so called Configuration Parameter.

Setting a Config Parameter

  1. First, you have to set the configuration-Parameter. Go to the class com.apiomat.nativemodule inside your Project with the module-code.[modulename].[modulename]

    images/download/attachments/61494487/pathToMainClass_temp.png

  2. At the top of the class, there is already an example of how to set a configuration-parameter (as a comment). Use this as a blueprint. Each field should be pretty self-explanatory

    1. Datatype: The datatype of the config-Parameter. As we want to set a default-price, we use the Type "Number"

    2. Example: An example for a value. It will be shown in an info-box provided for this config-parameter from the dashboard.

    3. Title: This is the name of the parameter which will be shown in the dashboard

    4. Info: An informational text that will be shown alongside the example in the info-box provided by the dashboard.

    5. Default-Value: This will be set when the module is deployed for the first time and can be changed afterwards.

    6. Order: Set the order in which your Config- Parameters are shown in the case that you have more than one.

    7. public static String [IdentifierToCall] = "[ModuleName]_[IdentifierYouLike]". The identifier on the left part is the name by which you will call the default-value from the module-code. The right part is used by ApiOmat for the internal localisation of the default-value. It is important to follow the convention that it must start with the module-name and an underscore. You can customize the part after the underscore as you like. The example below clarifies this expalanation.

    @NativeModuleConfig(
    datatype = Type.NUMBER,
    example = "0.8",
    title = "Default Price",
    info = "This is the default price of every new grocery",
    defaultValue = "0.5",
    order = 1 )
    public static String DEFAULT_PRICE = "TutorialModule_defaultPrice";
  3. Now that you have set the Config-Parameter, upload your module-code so that your changes are synchronized.

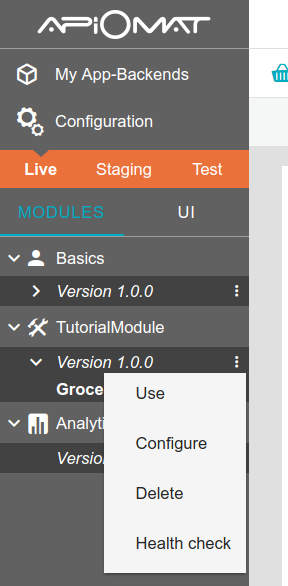

  4. Inside the dashboard, you can now access the configuration of your module by clicking on the dots besides the module version:

    images/download/attachments/61494487/submenu_classbrowserwidget.png

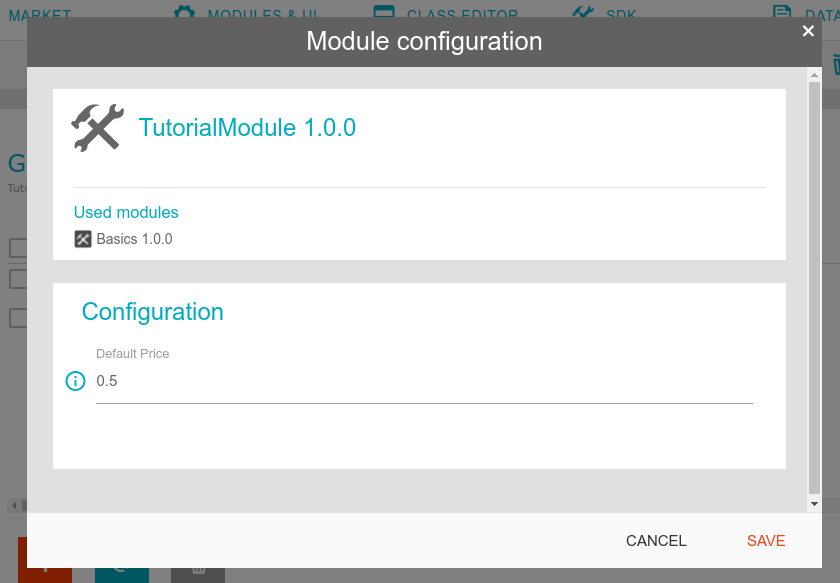

  5. Now the Configuration-Panel opens. Set the default-price you like!

    images/download/attachments/61494487/module_config.png

The problem- Although you provided the option to enter a conifg parameter, you do not use the value anywhere up until this point. Next we will show you how to do this.

Call a Config Parameter

  1. In this example, we set a default value for every new grocery that is created inside the GroceryHooksNonTransient-Class. We will change the code inside the beforePost-Hook like so:

    1. The value of a config-parameter is called by means of the static method [ModuleName].APP_CONFIG_PROXY.getConfigValue([ModuleName].[identifierToCall], [applicationName], [usedSystem]). The [applicationName] and the [usedSystem] are provided by the incoming request, and the identifier is the same one you set earlier.

    2. The returned value is an object, which has to be type-cast to the acutal datatype you intented to use.

      @Override
      public void beforePost( Grocery obj, Request r )
      {
      Object defaultPrice = TutorialModule.APP_CONFIG_PROXY.getConfigValue( TutorialModule.DEFAULT_PRICE,
      r.getApplicationName( ), r.getSystem( ) );
      Double castedPrice = Double.valueOf( String.valueOf( defaultPrice ) );
      obj.setPrice( castedPrice );

      }
  2. As always, upload your module-code for the changes to take place

  3. Return to the dashboard and go to the data-tab. Now, every time you create a new grocery, it should automatically have the price that has been set in the configuration-dialog!

    images/download/attachments/61494487/data_editor_config_val.png

Congratulations! Now that you know how to set configuration parameters, you are well on the way of mastering ApiOmat. In the next tutorial, we will show you how to build rest-endpoints.
