[Zipkin] Installation


Introduction

Zipkin is a distributed tracing system. It helps gather timing data needed to troubleshoot latency problems in microservice architectures. It manages both the collection and lookup of these data. Zipkin’s design is based on the Google Dapper paper.

In traditional structures there are multiple services and multiple instances communicating each other. When an exception thrown, it is required to ssh every application and their instances, search for the error message and analyze the response times of instances. In the small structure it is not a big deal but with bigger structure there is a need for central monitoring. Zipkin helps for tracing and analyzing these data.

Applications are instrumented to report timing data to Zipkin. The Zipkin UI also presents a Dependency diagram showing how many traced requests went through each application. If you are troubleshooting latency problems or errors, you can filter or sort all traces based on the application, length of trace, annotation, or timestamp. Once you select a trace, you can see the percentage of time each span takes which allows you to identify in which application slow response may have occurred. (Trace/Span terminology is very well described at the Spring Cloud Sleuth library)

Prerequisites

Default port should be available :

  • 9411 (Default Zipkin instance)

A library takes care of passing tracing information between threads/libraries/context etc. should be configured in the application

System requirements

In the basic setup, Zipkin comes without any requirements, since data is stored in memory. Zipkin provides some extensions, which may introduce some requirements

Following docker-compose contains an example of detailed integration;

  • Configure Apiomat Microservices for tracing (Please take a look at the general service configuration to see, how the Zipkin URI has to be configured.)

    • Sleuth is used in microservices for tracing

      • Zipkin URL is configured

      • 100% sampling configured which sends every data to Zipkin (Sampling is provided by Sleuth so less percentage of data could be sent to Zipkin for performance reasons)

  • Additionally Zipkin is configured with Grafana and Prometheus, official example can be found here

    • Zipkin is configured with MySQL persistence

    • Grafana and Prometheus is added.

      • Prometheus gathers stats from applications where Zipkin supports it.

      • Grafana is used for displaying metrics and Zipkin officially has pre-configured dashboard and datasource for Grafana.

    • Script given here should exist relative folder in the below compose file. These scripts adds a datasource and configured dashboard to Grafana.

Installation

Linux and Windows

Zipkin is not included in our installation package and must be installed separately. Follow the instructions from Zipkin directly.

Docker Compose
Docker Compose
# Docker login
docker login -u <USERNAME> -p <PASSWORD>

# Store the following file and execute:
docker-compose -f aom-zipkin.compose up
Docker Compose
version: '3.5'
services:

# Configure Yambas and mongodb
mongo:
image: mongo:3.4
command: --smallfiles
yambas:
image: apiomat/yambas:3.4.1
ports:
- "8081:8081"
environment:
common_hosts_admin: http://localhost:8081
common_hosts_live: http://localhost:8000
common_hosts_staging: http://localhost:8000
common_hosts_test: http://localhost:8000
common_isEnterpriseInstallation: "true"
yambas_configEncryptionKey: '<encryptionkey>'
common_consul_url: http://consul:8500
common_consul_health_port: 8081
yambas_mongodb_hosts_default: mongo:27017
yambas_license_key: <licensekey>
spring_zipkin_baseUrl: http://zipkin:9411
spring.cloud.consul.host: consul
depends_on:
- mongo
- consul

# Configuring zipkin via offical doc: https://github.com/openzipkin/zipkin/blob/master/docker/examples/docker-compose.yml
storage:
image: openzipkin/zipkin-mysql
container_name: mysql

zipkin:
image: openzipkin/zipkin
container_name: zipkin
environment:
- STORAGE_TYPE=mysql
- MYSQL_HOST=mysql
ports:
- 9411:9411
depends_on:
- storage
dependencies:
image: openzipkin/zipkin-dependencies
entrypoint: crond -f
environment:
- STORAGE_TYPE=mysql
- MYSQL_HOST=mysql
- MYSQL_USER=zipkin
- MYSQL_PASS=zipkin
depends_on:
- storage

prometheus:
container_name: prometheus
image: prom/prometheus
ports:
- 9090:9090
depends_on:
- storage
volumes:
# Map where you saved from example: https://github.com/openzipkin/zipkin/tree/master/docker/examples/prometheus
- ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml

grafana:
container_name: grafana
image: grafana/grafana
ports:
- 3000:3000
depends_on:
- prometheus
environment:
- GF_AUTH_ANONYMOUS_ENABLED=true
- GF_AUTH_ANONYMOUS_ORG_ROLE=Admin

setup_grafana_datasource:
image: appropriate/curl
container_name: setup_grafana_datasource
depends_on:
- grafana
volumes:
# Map where you saved from example: https://github.com/openzipkin/zipkin/tree/master/docker/examples/prometheus
- ./prometheus/create-datasource-and-dashboard.sh:/create.sh:ro
command: /create.sh

# Adding service disocovery(consul) and gateway(dispatcher) microservices
consul:
image: library/consul
ports:
- 8500:8500
command: agent -dev -ui -client=0.0.0.0
dispatcher:
image: apiomat/dispatcher:1.0.1
environment:
SPRING_CLOUD_CONSUL_HOST: consul
SPRING_CLOUD_CONSUL_PORT: 8500
spring.zipkin.baseUrl: http://zipkin:9411
spring.sleuth.sampler.probability: 1
ports:
- "8000:8000"
depends_on:
- consul
volumes:
mongoData:

Configuration

Linux and Windows

Configuration are described in the Zipkin extensions site for each extension.

Docker

Environmental Variables

The following variables are mentioned in the docker compose file above for Zipkin; for further configuration using docker you can refer to Zipkin docker configuration.

Key

Default

Explanation

STORAGE_TYPE

mysql

Mysql used in the above compose. More options can be found here

MYSQL_HOST

mysql

Configures Mysql host, defaults to localhost

The following variables are mentioned in the docker compose file above for Microservices tracing solution (Spring Cloud Sleuth); for further configuration using docker you can refer to Spring Cloud Sleuth configuration.

Key

Default

Explanation

spring.zipkin.baseUrl

http://zipkin:9411

Configures Zipkin URL. Defaults to localhost:9411

spring.sleuth.sampler.probability

1

Configures tracing rate sending to Zipkin. Default is 0.1 which is 10%.

Next steps

After running above compose, first sent a simple request to yambas via dispatcher:

curl -v --location --request GET 'localhost:8000/yambas/rest/apps/{appName}/Models/Basics/User' \
--header 'x-apiomat-apikey: {APIKEY}' \
-u {yourUserName}:{yourPassword}

Go to http://localhost:9444/zipkin and search for newest traces:

images/download/attachments/65289494/image2020-2-27_10-21-38.png

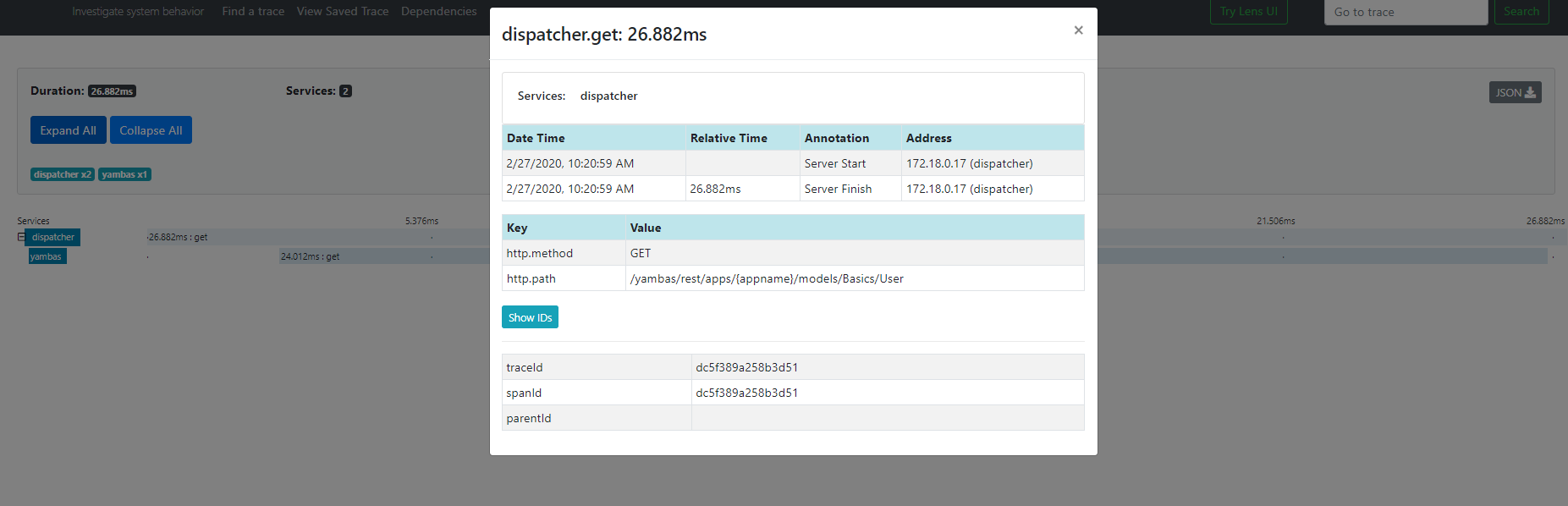

Click on the dispatcher trace. In this page Zipkin shows every service and instance hit by your initial request. First it arrives at Dispatcher than it makes request to Yambas. Click on Dispatcher to see its details:

images/download/attachments/65289494/image2020-2-27_10-33-30.png

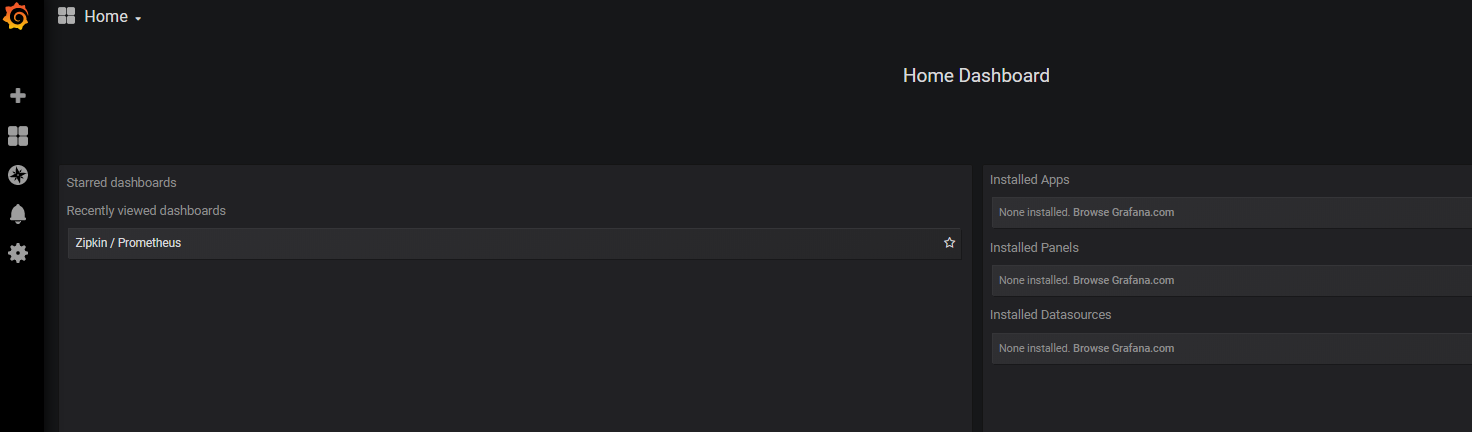

Also in the above example compose, Prometheus and Grafana is also configured (you can also configure other solutions, in this example we stick with official example). Go to Grafana dashboard on http://localhost:3000

images/download/attachments/65289494/image2020-2-27_10-58-51.png

Select Zipkin/Prometheus Dashboard. This is pre-configured dashboard with example metrics. You can edit/extend/set alarms and keep track of Zipkin metrics here:

images/download/attachments/65289494/image2020-2-27_11-2-54.png
